H02 Series

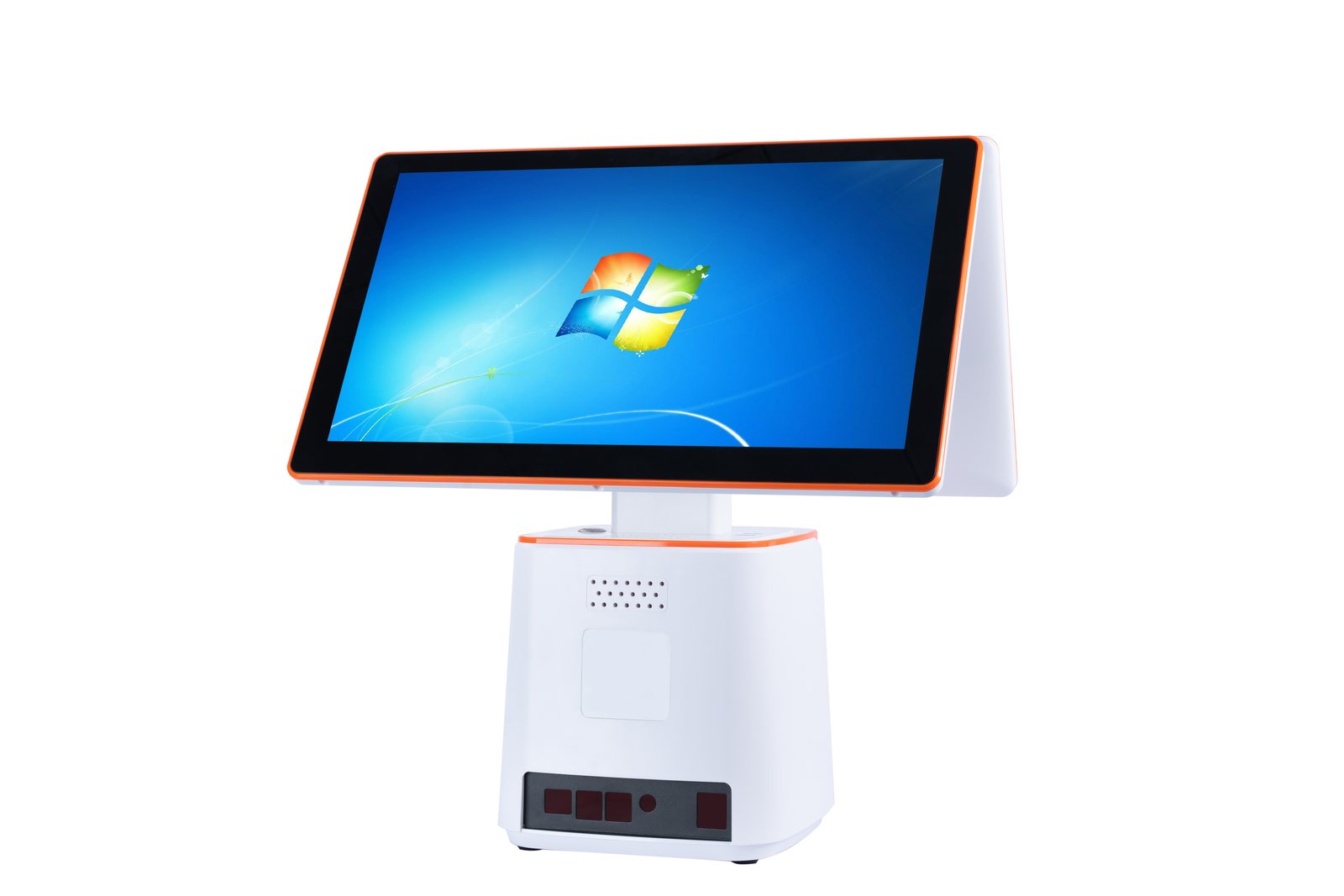

H02 Series product view
H02 Series SERIES · FOLDABLE POS

Foldable POS for Modern Counters.

H02 Series is a foldable 15.6-inch POS platform with single-display layouts, a black 10.1-inch customer-display option, and 11.6-inch customer-display configurations in silver and gray-black.

Foldable POSWindows DisplaySingle & Dual DisplayOEM / ODM

COLOUR

REQUEST A QUOTEREQUEST DATASHEET
Windows-wallpaper product images are shown throughout the H02 Series gallery. Final hardware configuration is confirmed per project.
Foldable Desktop DesignAdjust the operator display for different counter layouts.
15.6-inch Touch DisplayCapacitive touch with 1366 × 768 resolution and 1920 × 1080 optional.
Single or Dual DisplayChoose a single-display build or an 11.6-inch customer display.
OEM / ODMBranding and hardware configuration are discussed per project.
H02 Series all-in-one terminal

PRODUCT OVERVIEW

Foldable form, practical checkout flexibility.

FoldPOS H02 Series combines a 15.6-inch capacitive-touch display, a folding desktop stand and configurable computing hardware in one counter terminal. This page presents the Windows-image configurations: 15.6-inch single display, black 15.6 + 10.1-inch dual display, and silver or gray-black 15.6 + 11.6-inch dual display.

Foldable desktop stand
15.6-inch capacitive touch
Single or 11.6-inch dual display
58 / 80 mm printer optional

TECHNICAL SPECIFICATIONS

Built around your H02 Series configuration.

Core H02 Series platform options are shown below. Final CPU, operating system, interfaces, display setup and peripherals are confirmed with the approved quotation.

CPU platformWindows: N5095, N97, N100, J6412, i3, i5 or i7  ·  Android: RK3566, RK3568 or RK3588
Operating systemWindows 7 / 10 / 11 or Android OS
Memory1 × SO-DIMM slot; DDR3L / DDR4; 4 GB / 8 GB / 16 GB optional
StorageM.2 / mSATA; 128 GB / 256 GB / 512 GB optional
Primary display15.6-inch LED capacitive-touch display; 1366 × 768, with 1920 × 1080 optional
Customer display8-digit LED customer display or 11.6-inch customer display optional
Printer & scanner58 / 80 mm printer optional; maximum print speed 180 mm/s; durability 100 km. Optional external 1D / 2D QR scanner.
Connectivity & options1000 Mbps self-adaptive LAN; MSR, Wi-Fi and speaker optional
Packing & net weightCarton: L442 × W155 × H455 mm; net weight: 6.5 kg

Images, specifications and configurations are for reference only. Actual products may vary without notice.

CONFIGURATION OPTIONS

Configure H02 Series for your checkout flow.

Choose only the H02 Series options required for the approved project configuration.

01

Compute platform

Windows CPUs from N5095 to i7, or Android RK3566 / RK3568 / RK3588.

02

Display setup

15.6-inch main touch display; black supports a 10.1-inch customer display, while silver and gray-black support an 11.6-inch customer display.

03

Memory & storage

4 / 8 / 16 GB memory and 128 / 256 / 512 GB M.2 or mSATA storage.

04

Receipt printer

Optional 58 mm or 80 mm printer with up to 180 mm/s specified print speed.

05

Scan & payment

Optional external 1D / 2D QR scanner and magnetic stripe reader.

06

Network & audio

1000 Mbps LAN with optional Wi-Fi and speaker.

PRODUCT DIMENSIONS

H02 product dimensions.

Reference dimensions for the H02 single-screen LED customer-display and dual-screen configurations.

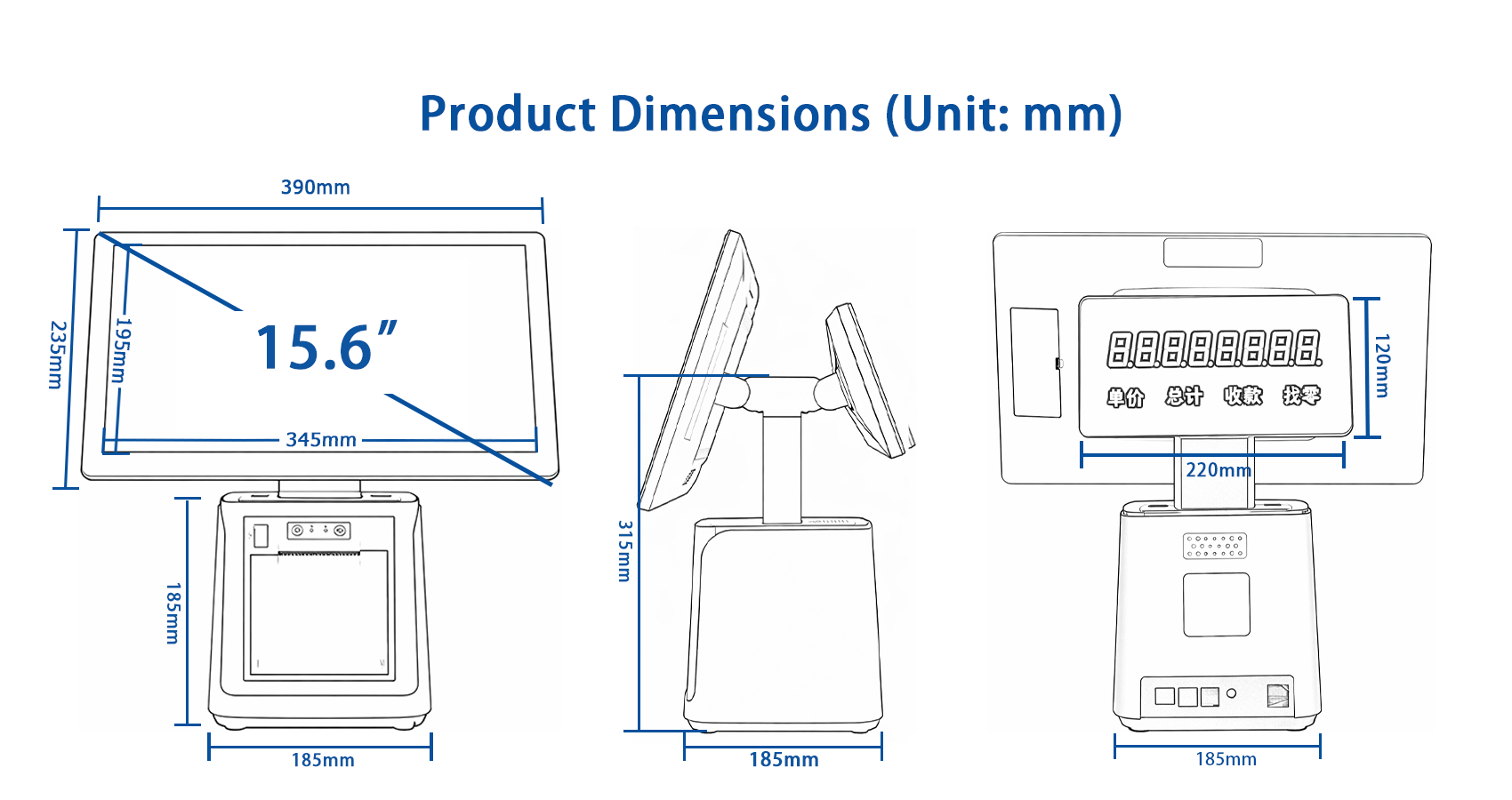

H02 15.6-inch single-screen POS with LED customer display dimension drawing
Single screen + LED display
15.6-inch H02 reference dimensions
H02 15.6-inch dual-screen POS product dimension drawing
Dual screen
15.6-inch H02 reference dimensions

Send us your required H02 Series configuration.

Include the target quantity, operating system, display setup and peripherals. Our team will review the appropriate FoldPOS H02 Series platform and options.

START AN INQUIRY →
