E6 SERIES · ALL-IN-ONE POS

Integrated POS for Everyday Checkout.

A configurable all-in-one touch terminal platform for retail, restaurant and hospitality projects.

RetailHospitalityIntegrated POSOEM / ODM

COLOUR

REQUEST A QUOTEREQUEST DATASHEET

Configuration, interfaces and peripheral options are confirmed according to project requirements.

Integrated PlatformTouch display and computing platform in one counter system.
Display OptionsProject review for operator and customer-facing layouts.
Peripheral ReadyInterface planning for required checkout peripherals.
OEM / ODM SupportBranding, appearance and configuration discussion.

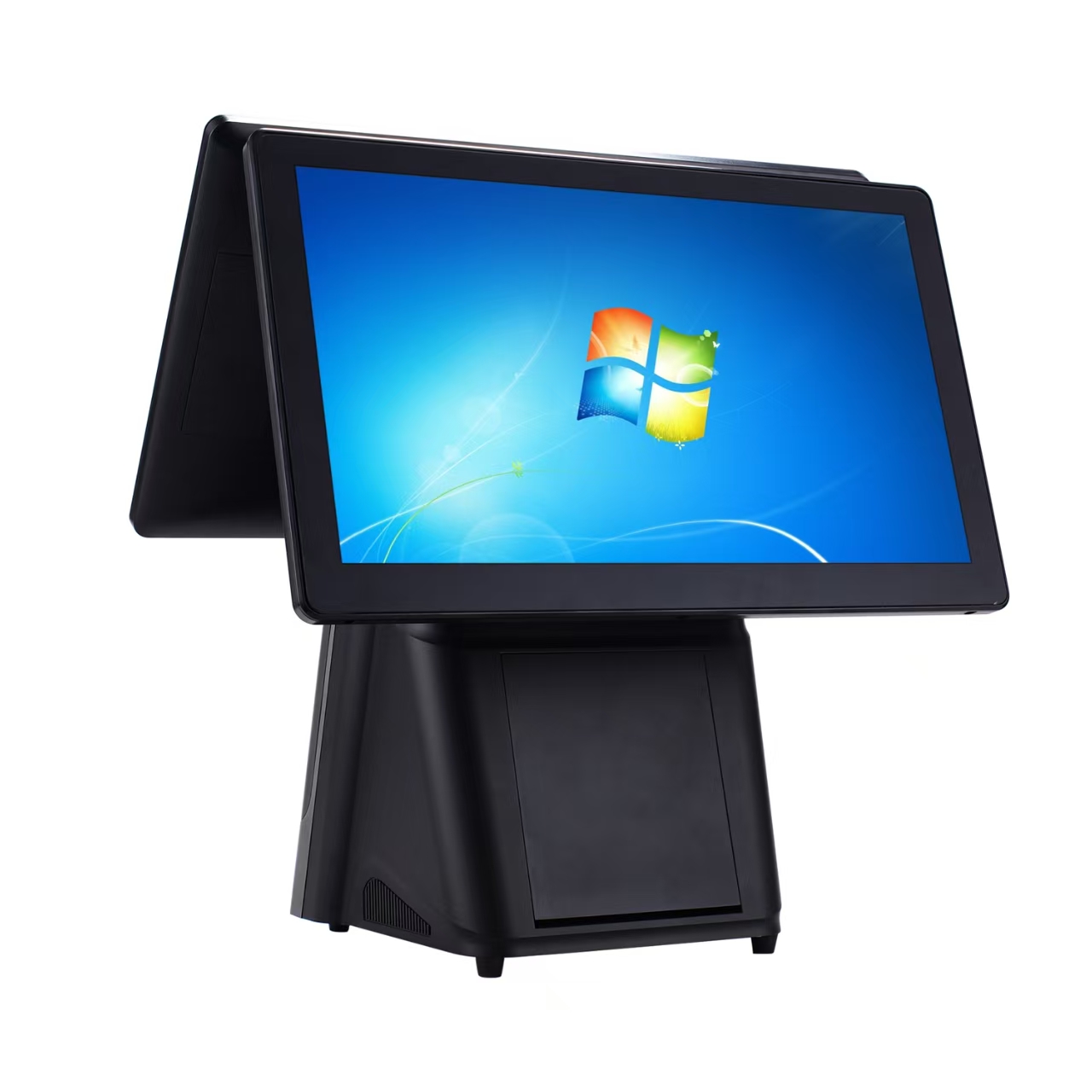

APOS E6 all-in-one POS terminal

PRODUCT OVERVIEW

Smart all-in-one POS, built for diverse business.

APOS E6 combines a 15.6-inch capacitive-touch operator display, computing platform and optional checkout peripherals in one counter terminal. Choose a single-screen model with an 8-digit LED customer display, or a dual 15.6-inch display configuration.

15.6-inch capacitive touch
Single or dual display
58 / 80 mm printer optional
1D / 2D scanner support

TECHNICAL SPECIFICATIONS

Built around your configuration.

Core options below are taken from the APOS E6 technical specification. Final configuration is confirmed with the approved quotation.

CPU platformWindows: N5095, N97, N100, J6412, i3, i5 or i7  ·  Android: RK3566, RK3568 or RK3588
Operating systemWindows 7 / 10 / 11 or Android OS
Memory1 × SO-DIMM slot; DDR3L / DDR4; 4 GB / 8 GB / 16 GB optional
StorageM.2 / mSATA; 128 GB / 256 GB / 512 GB optional
Primary display15.6-inch LED capacitive-touch display; 1366 × 768, with 1920 × 1080 optional
Customer display8-digit LED customer display, or 11.6 / 13.3 / 14 / 15-inch customer display options
Checkout peripherals58 / 80 mm printer optional; maximum print speed 180 mm/s; printer life 100 km. 1D / 2D QR scanner support.
Connectivity & optional modules1000 Mbps self-adaptive LAN; MSR, Wi-Fi, speaker and dual camera optional
Packing & net weightCarton: L470 × W300 × H495 mm. Single-screen LED customer-display model: 6.5 kg; dual-screen model: 7.35 kg.

Images, specifications and configurations are for reference only. Actual products may vary without notice.

CONFIGURATION OPTIONS

Choose the E6 for your checkout flow.

These are actual E6 platform options listed in the specification, rather than preset bundles.

01

Compute platform

Windows CPUs from N5095 to i7, or Android RK3566 / RK3568 / RK3588.

02

Customer-facing display

8-digit LED, or 11.6 / 13.3 / 14 / 15-inch secondary display options.

03

Integrated printer

Optional 58 mm or 80 mm printer; up to 180 mm/s specified print speed.

04

Scan & payment

1D / 2D QR scanner support, plus optional MSR and dual camera.

05

Network & audio

1000 Mbps self-adaptive LAN with optional Wi-Fi and speaker.

06

Memory & storage

4 / 8 / 16 GB memory and M.2 / mSATA storage options to match the operating system.

PRODUCT DIMENSIONS

E6 product dimensions.

Reference dimensions for the E6 single-screen LED customer-display and dual-screen configurations.

E6 15.6-inch single-screen POS with LED customer display dimension drawing
Single screen + LED display
15.6-inch E6 reference dimensions
E6 15.6-inch dual-screen POS product dimension drawing
Dual screen
15.6-inch E6 reference dimensions

Send us your required configuration.

Include the application, target quantity, operating system, interfaces and peripherals. Our team will review the appropriate platform and options.
